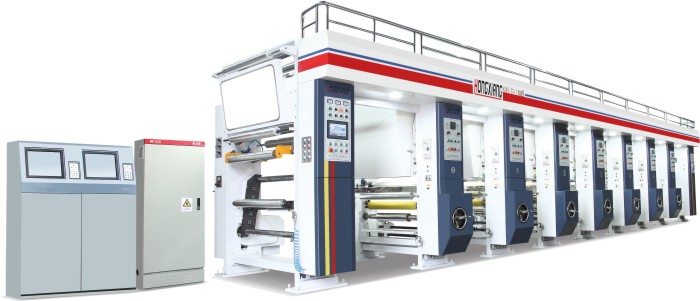

1, use: This machine is suitable for BOPP, PET, CPP, PVCD and the same nature of the combination of film, paper, etc.. The machine printing speed 5-150 M / min, mechanical speed of 160 m / min.
2, the main transmission mechanism: the main drive using variable frequency motor, each set of plates. Features: save electricity.
3, no shaft assembly version of the body: the installation version of the cylinder, pulling the core shaft to install version, horizontal adjustment using screw. Features: reduce the version of the time, to ensure that the concentric degree, improve product quality.
4, ink scraper mechanism: upper and lower blade arbitrarily blade pressure and angle, using the double cylinder, lateral movement of the synchronous motor rotation cam movement. Features: extended version of life.
5, nano imprint lithography lifter: nano imprint lithography with dual cylinder locking on the gas leakage and stop cylinder down protection. Features: to ensure that the average pressure, to ensure that the color difference.
6, colour manipulaltor: the use of computer control of synchronous motor by adjusting the gear transmission of ball screw for automatic registration. Features: lubrication, high precision adjustment.
7, charge, discharge structure: duplex unwinding and feeder, automatic roll changing and automatic feeding, feeding, feeding tension and the traction tension using vector control speed, receiving the frequency vector control. Features: accelerated color stability, lateral run version, for large quantities of printing ink, can save material, solvent and energy, feeding speed of 120 m / min, receiving maximum waste of about 10 meters, 20 meters more than three saving motor, ink, solvent and energy saving of about 15%, greatly reduce the main products cost.
8, drying and cooling structure: oven adopts centrifugal fan blowing and suction and water cooling and reduce the film temperature, air flow is formed inside the oven heat cycle, temperature controlled by intelligent temperature controller, back wind cooling type roller, ensure the film cooling. Features: save electricity.
Main technical parameters:
Model
HXAY-850C1 type
HXAY-1250C1 type
Printing width
850mm
1250mm
Printing speed
150mm Max
150mm Max
Plate diameter
Phi 100-350mm
Phi 100-350mm
Roll material diameter
Phi 600mm
Phi 600mm
Horizontal adjustment of printing plate
30mm
30mm
Main control mode
PLC joint control
PLC joint control
Printing precision
+ 0.1mm
+ 0.1mm
Total machine power
80kW
100kW
Machine weight
18000kg
20000kg
Machine dimension
12900x2900x2700mm
12900x3200x2700mm
