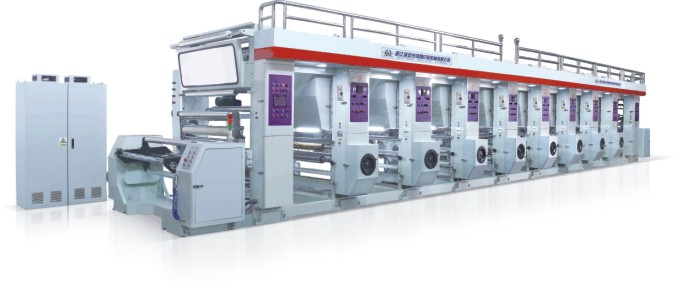

    Gravure automatic computer HXAY800/1100A the chromatic Caiyin (seven motor)
    Author£ºadmin Date£º2015-7-9 15:35:11 Hits£º

    1, uses: This machine is suitable for BOPP, PET, CPP, PVCD the same nature, and combined film and paper. Its printing speed 5-150 m / min, the mechanical speed of 160 m / min.
    2, the main transmission: The main transmission adopts frequency conversion motor, drive each plate. Features: saving electricity.
    3, no shaft-mounted version of the agency: loaded version with the cylinder, pull the mandrel for loading, horizontal adjustment adopts the movement of screw. Features: reduce time to replace, to ensure concentricity, improve product quality.
    4, ink scraper: The scrapers can be adjusted up and down and angle, squeegee pressure dual cylinder, lateral movement synchronous motor rotating cam. Performance: lengthen life.
    5, stamping lifting mechanism: The impression adopts dual air cylinder pressure rise from the locked position with the cam on the cylinder leakage and cylinder stands out under the protection. Features: to ensure that the average pressure to ensure that color.
    6, Chromatic Mechanical Handles: They adopt computer-controlled synchronous motor through reducer drive ball screw adjustment, automatic color register. : Rotate with lubrication, chromatography and high precision.
    7, to close, discharge structure: the use of duplex close, put rack, automatic roll change and automatic splicing, tension and close discharge, discharge traction tension with frequency vector control line speed, rewinding using vector conversion control. Features: accelerate the chromatic stability, horizontal direction, save for large quantities of printed materials, inks, solvents and energy, then the expected speed of 120 m / min, then the biggest waste of material is about 10 meters, more than three motor to save about 20 meters, inks, solvents and energy savings of about 15%, greatly reducing the cost of the main products.
    8, drying, cooling structure: the use of centrifugal fan blowing smoke oven and reduce the film roll cooling water temperature, heating tube of hair located in the mouth of each oven is heated oven air flow within the formation of thermal cycling, the temperature by the intelligent temperature control, back Roll with the wind cooled, ensure that the film cooling. Features: saving electricity.

    The main technical parameters:
    Models HXAY-800A type HXAY-1100A-type
    Printing width 800mm 1100mm
    Printing speed Max 150mm Max 150mm
    Plate diameter ¦µ100-350mm ¦µ100-350mm
    Coil diameter ¦µ600mm ¦µ600mm
    The amount of lateral adjustment plate 30mm 30mm
    The amount of vertical adjustment plate 100 degrees (degree) 100 degrees (degree)
    Overlay accuracy of ¡À 0.1mm ¡À 0.1mm
    Total power 75kw 90kw
    Machine weight 19000kg 20000kg
    Overall dimensions 14000x2650x2800mm 14000x2950x2800mm
