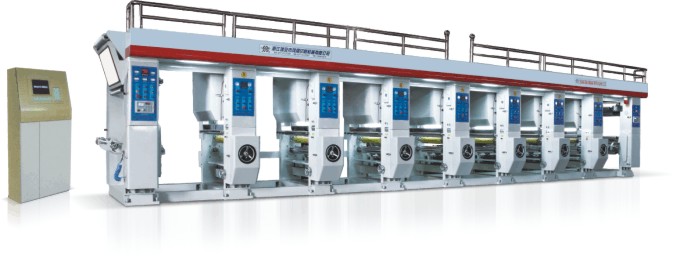

1, uses: This machine is suitable for BOPP, CPP, PET, PCVD and a combination of the same nature of film and paper.
Its printing speed is 80 m / min, the mechanical speed of 100 m / min.
2, the main transmission mechanism: main drive motor inverter control Shenzhen Kymmene, drive each plate. Features: saving electricity.
3 no shaft-mounted version of the agency: loaded version with the cylinder, pull the mandrel for loading, horizontal adjustment adopts the movement of screw.
Features: reduce time to replace, to ensure version of concentricity, improve product quality.
4, ink scraper: The scrapers can be adjusted up and down and angle, squeegee pressure single cylinder, horizontal movement using motor rotating cam. Performance: lengthen life.
5, stamping lifting mechanism: The impression adopts dual air cylinder and solenoid, step-up position, down to the cylinder leakage and cylinder a protector.
Features: to ensure that the average pressure to ensure that color.
6, Chromatic Mechanical Handles: They adopt computer-controlled synchronous motor through a reduction gear screw adjustment, automatic color register.
: Rotate with lubrication, chromatography and high precision.
7, to close, put feed mechanism: double + station close, put rack, discharge use of magnetic tension control, traction tension using domestic automatic tension control, receiving torque motor control. Features: reduce waste and reduce costs.
Dry and cool: the use of centrifugal fan blowing smoke oven, electric oven quartz tube located in the hair mouth each heating temperature by the intelligent temperature control, cooling on each oven, a centrifugal fan cooling equipment exports, ensure that the film cool. Features: saving electricity.
The main technical parameters:
Models HXAY-800D type HXAY-1100D Type
Printing width 800mm 1100mm
Printing speed Max 110mm Max 110mm
Plate diameter ¦µ100-350mm ¦µ100-350mm
Coil diameter ¦µ600mm ¦µ600mm
The amount of lateral adjustment plate 30mm 30mm
The amount of vertical adjustment plate 100 degrees (degree) 100 degrees (degree)
Overlay accuracy of ¡À 0.1mm ¡À 0.1mm
Total power 75kw 90kw
Machine weight 13000kg 14000kg
Overall dimensions 10500x2500x2400mm 10500x2500x2500mm
|
