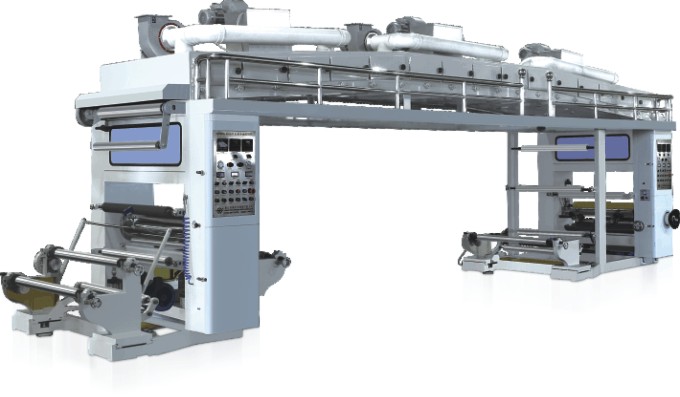

The first metal of this machine is adopted with"photo-electricity auto.Tracking"correcting deviation equipment,magnetic powder tension control,oven temperature controlled automatically, big roll with oil heating,coating composite pneumatic control as well as double frequency governor etc.it will make the machine with fast speed,lower voice,low polluted by air ,short consumption for energy,stable working etc.especially suitable for Al-foil with smooth surface and no enough firming,glass paper,polyester,polyamide etc.the composite material with hard strength,fireproof,anti-ventilation,anti-fatty,frozen,durable steam etc character.It is widely used in food,pharmacy,as well as daily articles to package.
Technical Variables£º
Main technical parameter: Composite layer
2layers/t
Max.composite width
600 ¡¢ 800 ¡¢ 1000 ¡¢ 1200mm
Max.roller diameter
¦Õ 500mm
Composite velocity
10 -90m /min
Adjustable temper
in the oven -100 ¡æ
TOtal power
34kw
Overall dimension
600 Commonness 4600x1300x 2600mm
1000 Moel 9000x1800x 2600mm
Net weight
600 Lengthen Model about 3000kg
1000Model about 4200kg
|
